Description

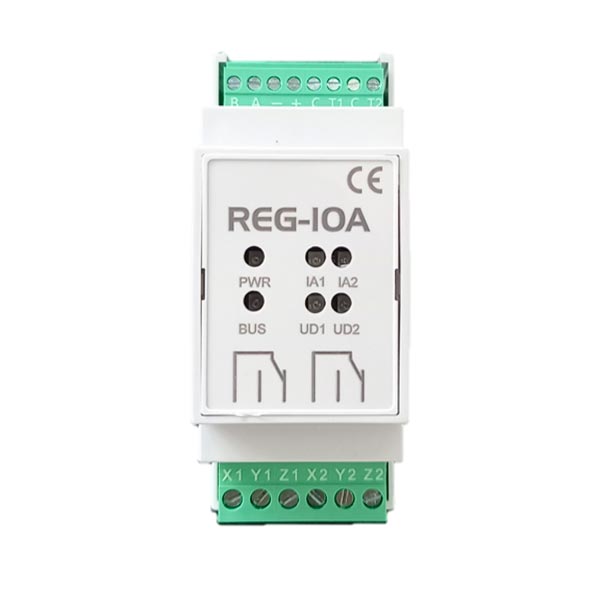

REG-IOA is a I/O expansion module of the REG System comprised of 2 digital outputs and 2 inputs (digital or analogue based on programming) set up for mounting in electrical panel, on standard DIN rail (2 modules). The connection to the regulation system is with bus.

The two digital/analog inputs allow to connect passive temperature probes or dry contacts, while the outputs are digital (output relay) and allow, for example, the control of ON/OFF valves, pumps and mixing valves with 3 control points.

All connections are set up through removable terminals, which facilitate the technician during the installation phase. The module is equipped with LEDs for status indication.

There are two 16-position rotary switches that allow you to select the address (from 20 to 55). A maximum of 35 REG-IOA modules can be connected in each REG system.
