REG-EXP-8
REG-EXP-8

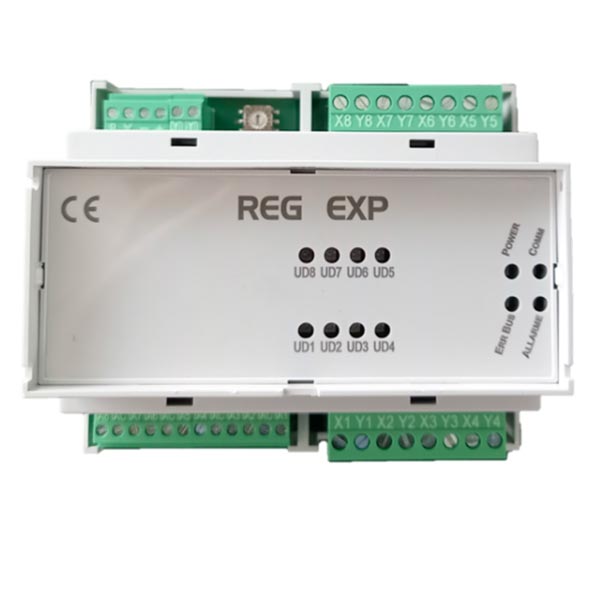

I/O expansion module of the REG System (8 IA/ID – 8 UD – 2 UA): 8 digital outputs, 2 analogue outputs and 8 inputs (analogue or digital)
Description
The REG-EXP-8 expansion module is set up for mounting in the electrical panel, on standard DIN rail (6 modules), and the connection with the REG System is through the proprietary bus.
The eight digital/analogue inputs allow to connect passive temperature probes or dry contacts, while the outputs are eight digital (output relay) and two analogue (0/10V). All connections are set up through removable terminals, which facilitate the technician during the installation phase. The module is equipped with LEDs for status indication.
There is a 16-position rotary switches that allow you to select the address (from 1 to 7). A maximum of seven REG-EXP-8 modules can be connected in each REG system.
